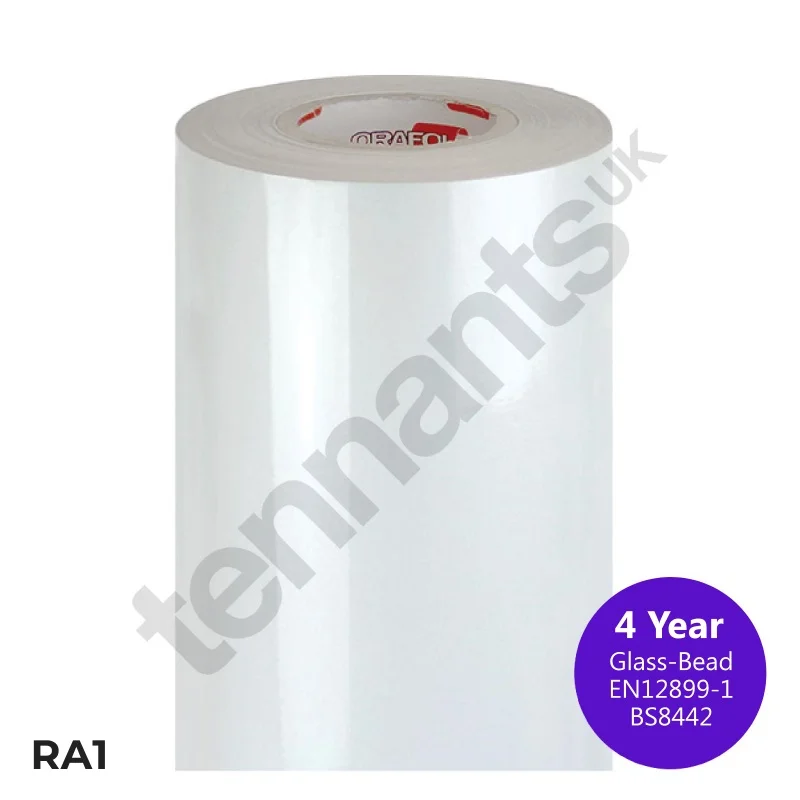

Oralite 5400 Commercial Grade
Oralite 5400 Commercial Grade is a glass bead reflective certified to EN 12899-1, Class RA1 for urban and streetwork signs. This glass-bead reflective comes with a 4 year durability and has a High-Tack version 5430.
Class RA1 – EN12899-1 / BS8442
Oralite 5400 Commercial Grade is designed to ensure temporary signs made of it are visible to road users and pedestrians. Which is perfect, since this film is aimed at the producers of urban and 12D Streetwork schemes. This speckled, glass-bead reflective is certified to EN 12899-1 at Class RA1. And has a smooth surface finish, compatible with both printed and cut graphic applications.
Oralite 5400 retroreflective has a 4 year service life and 6 colours available in 1235mm rolls. In addition, there’s a selection of compatible products that help to maintain its visibility & durability. Not to mention a High-Tack version 5430, with adhesive for plastic and metal surfaces. The ORAFOL webpage for Oralite 5400 Commercial Grade has more details, data sheets, certificates & application instructions.
Oralite 5400 Quick-Specs
Film: Oralite Oralite 5400 Commercial Grade
Tech: RA1 Glass Bead Film
Roll Widths: 1235mm
Roll Length: 50 metre rolls
ST Colours: 0.135mm thick
Variant: 5430 High-Tack
Material Details
- Reflective Class: RA1
- Standard: EN 12899-1 / BS8442
- PVC Film with Silicone Paper Liner
- Technology: Glass Bead
- Durability: 4 year life
- Colours: 6 Standard
- Pressure Sensitive Adhesive for Metallic Surfaces
Compatible Products
- Digital Ink: 5019i (uv) / 5017 (eco)
- Transparent Film Overlay: 5051
- Protective Overlay: 290F / 293F
- Screen Ink: 5018
- Lettering Film: 5071
Colours & Pattern
Colours & patterns shown below are for illustration purposes and may not match actual films. Click for slightly larger swatches.
Standard Colours
5400-010-White
010 White
5400-020-Yellow
020 Yellow
5400-030-Red
030 Red
5400-035-Orange
035 Orange
5400-050-Blue
050 Blue
5400-060-Green
060 Green
Oralite 5400 Downloads
The Orafol website has a selection of data-sheets, instructions & safety info for Oralite 5400. Below you will find a set of links for those downloads.
Traffic Signs & Construction Zones
Data Sheet
Application Instructions
Safety Info
