B432 Overview

B432 Overview

Here’s our B432 Overview, we use these A4 LED printers for our Trade Mono systems because it makes affordable number plates of various sizes. This page highlights the important parts and locations on the OKI printer. Refer to this page when troubleshooting or to find out what a part is called.

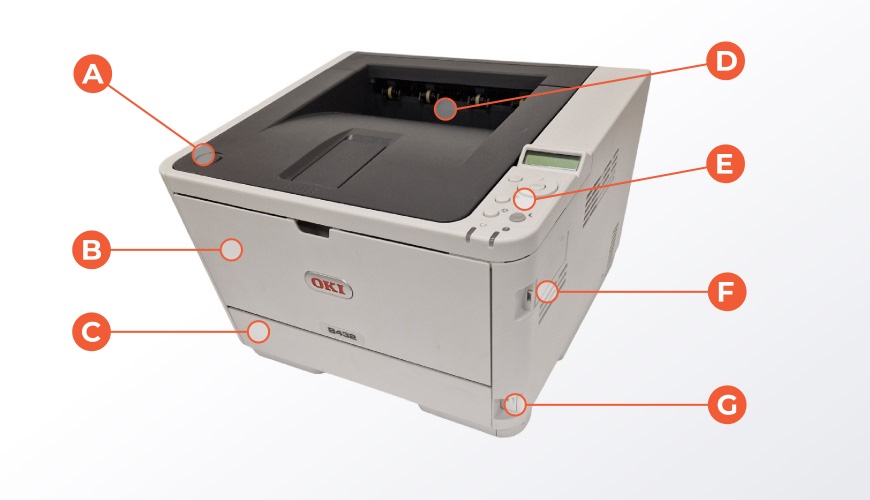

Printer Front

B432 Overview - Printer Front

B432 Printer Front and Top view

  • A: Top Cover Button
  • B: Multi-purpose Tray
  • C: Paper Tray 1
  • D: Output
  • E: Control Panel
  • F: Wireless Module Port
  • G: Power Switch

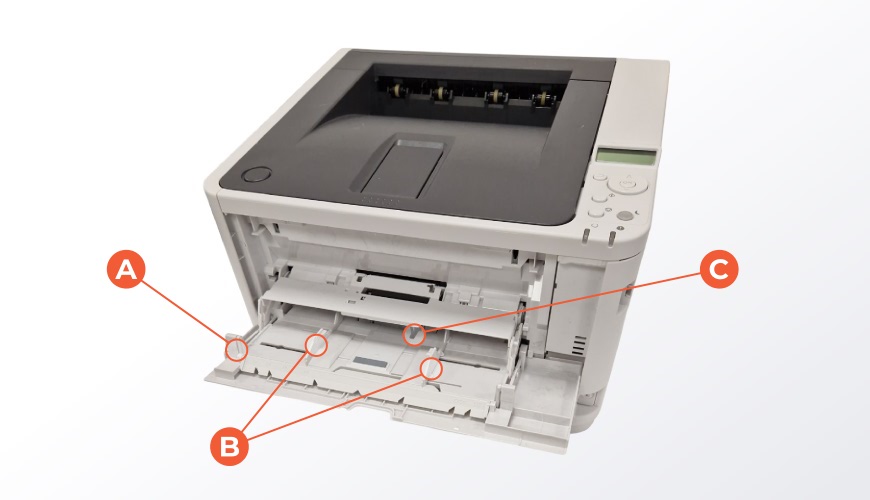

B432 Multipurpose Tray

B432 Printer – Multipurpose Tray

  • A: Paper Tray / Supporter
  • B: Sliding Media Guides
  • C: Media detection sensor lever

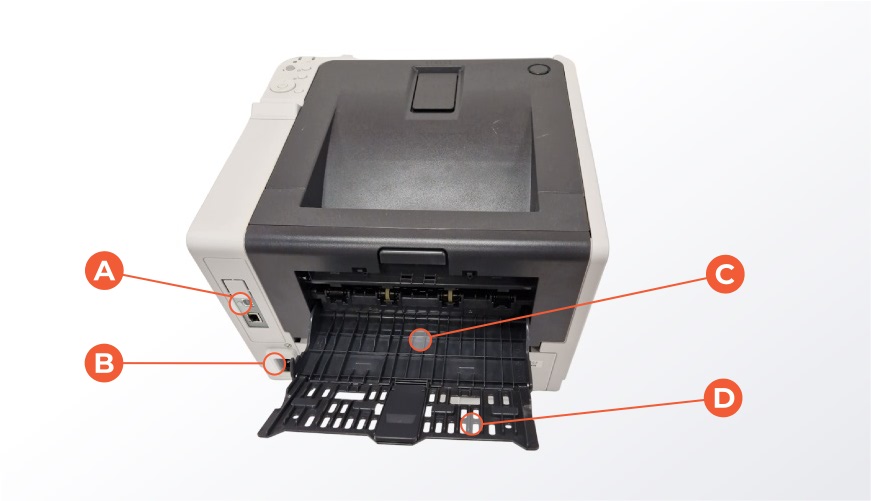

Printer Rear

B432 Rear Output

B432 Printer – Rear Output

  • A: Connectivity Options
  • B: Mains Power Port
  • C: Rear Output & Tray
  • D: Extension Tray

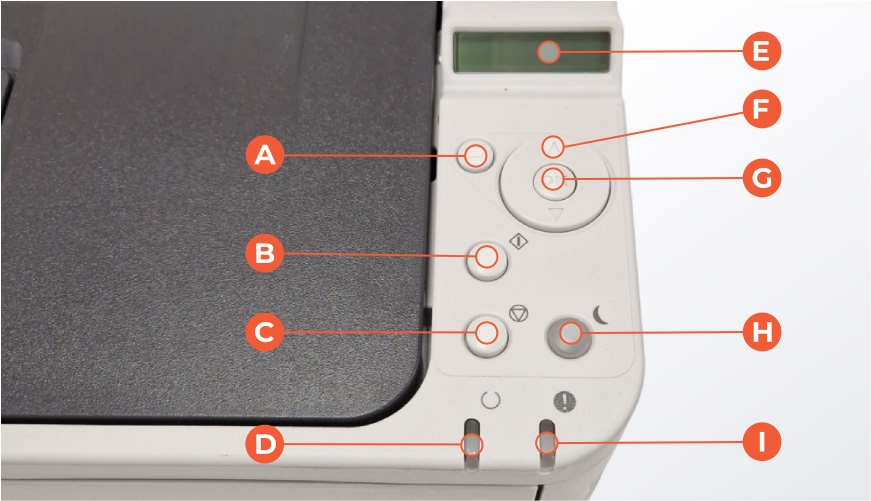

Operator Panel

B432 Control Panel

B432 Printer – Operator Panel

  • A: Back Button
  • B: Online Button
  • C: Cancel Button
  • D: Ready Light – Green
  • E: LCD Display
  • F: Up/Down Scroll Buttons
  • G: OK Button
  • H: Power Saving Button
  • I: Attention Light – Red

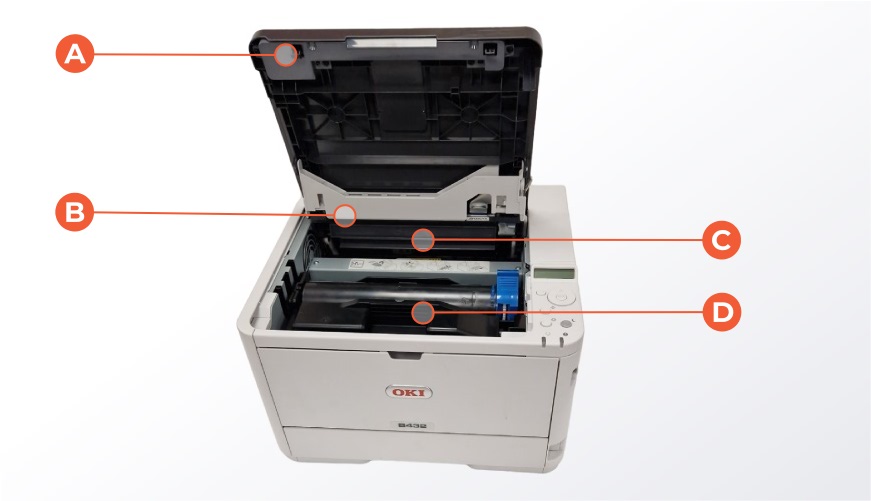

Printer Interior

B432 Interior View

B432 Printer – Interior View

  • A: Top Cover
  • B: Houses LED Head
  • C: Fuser Unit
  • D: Toner & Drum Unit

Need Help?

This is a basic overview of the OKI B432 Number Plate Printer. Please refer to your user or manufacturers guide for more up-to-date information. If you’ve an account, you can order replacement B432 Consumables from our online NP-Shop.

Our knowledge base contains articles with details on replacing this printers toners, drums and clearing simple media jams. Not to mention how to load our plate media and approved printer preferences. And has solutions to common number plate print issues and printer errors.
